Visible geometry
Broad outer faces, rounded edges, recessed panels and openings of different shapes are visible.
CUSTOM MANUFACTURING EXAMPLE
Black Machined Enclosures

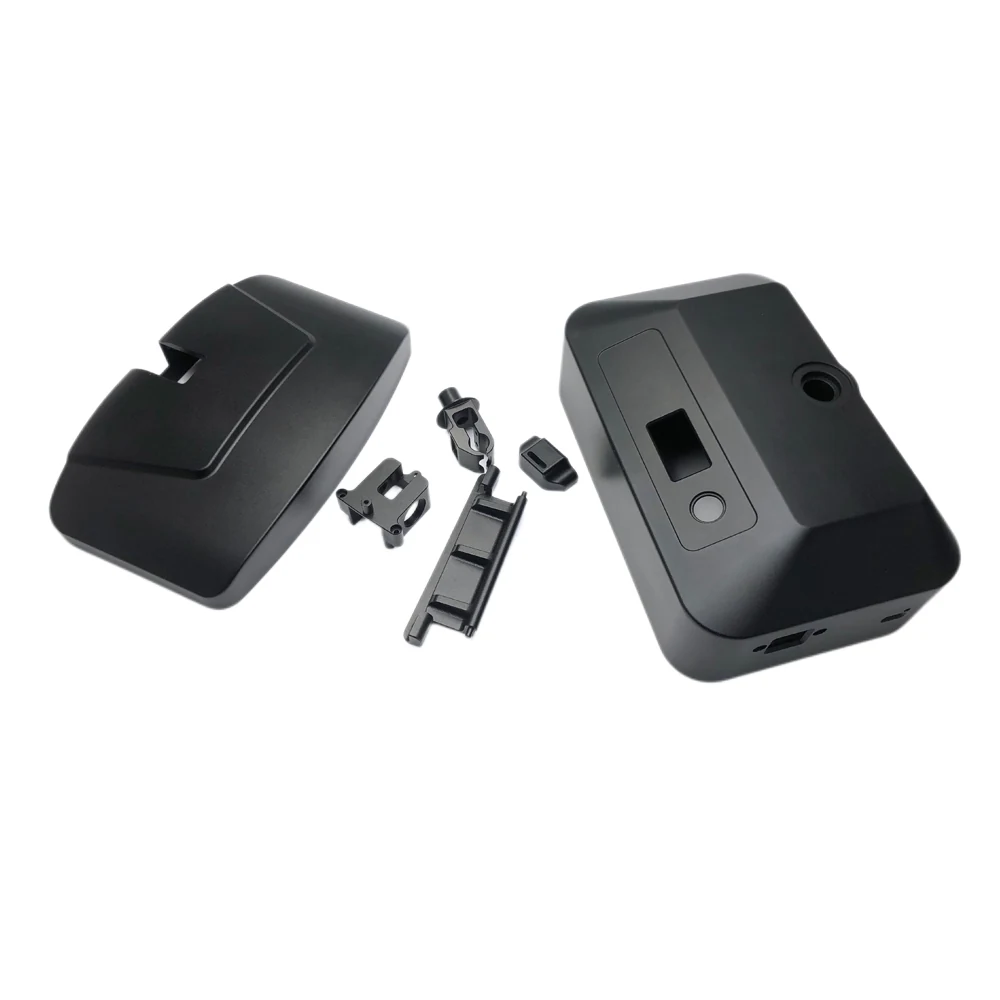

The photograph shows enclosure and cover forms with recessed panels, circular holes and rectangular openings. A similar housing needs drawing-led review of mating edges, wall sections and external appearance.
- Process / category
- CNC Milling
- Product group
- CNC Milling
These photographs illustrate manufacturing examples. Material grades, dimensions, tolerances, finishes, inspection requirements, quantity and delivery dates are confirmed after reviewing your drawings.
PART-SPECIFIC DRAWING REVIEW
From visible features to drawing requirements.
Drawing review priorities
Provide the mating-part geometry, wall thickness, recess depths, corner radii and any protected cosmetic surfaces.
Inspection planning
Define the dimensions of openings and mating edges, any flatness requirements, and the visual standard for finished outer faces.
Photo-based observations and review guidance. The photographed parts do not establish a material grade, tolerance, end use or verified manufacturing process.
PREPARE YOUR INQUIRY
Start with your drawing requirements.
Send a STEP or IGES model with a matching PDF drawing, quantity, material grade and surface finish. Identify critical dimensions and inspection needs so our team can review the scope before quoting.
Quality control and inspection ↗
