CNC Machining Examples

Explore real photographs from our product catalogue, then see which drawing details help us review a similar part. Start with the shape you need and work directly with our factory team in Xiamen, China.

Discuss your own part
Milled bracket and housing examplesCNC MillingTurned sleeve and thread examplesCNC TurningMulti-face housing and connector examplesMulti-face parts

These are part examples with quotation and review notes. Material grades, quantities, tolerances, machining routes and inspection results are confirmed for your own project.

FROM EXAMPLE TO RFQ

Turn a reference photo into a clear inquiry.

A photograph helps explain the kind of part you need. Your drawing and requirements define what we will quote and inspect.

  1. Choose the closest example

    Use the examples below to explain the shape or features you want to discuss.

  2. Add your drawing and requirements

    Include material, dimensions, quantity, finish and the critical features for your assembly.

  3. Agree the manufacturing scope

    Review the machining approach, inspection requirements, pricing and timing with our team.

Milled bracket and housing examples

Product catalogue photograph

01 / PART EXAMPLE

Milled bracket and housing examples

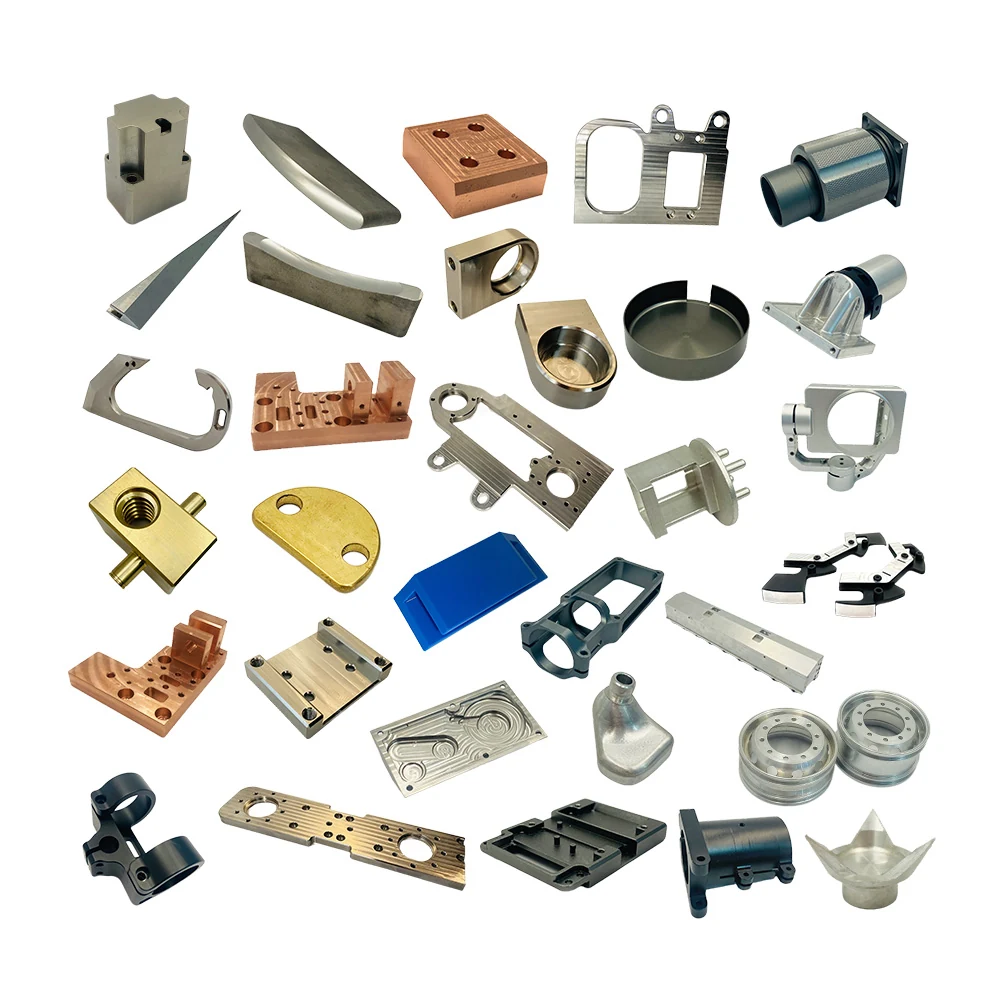

The catalogue photograph brings together plates, brackets, housings and machined profiles in a variety of shapes and visible finishes.

Review before quoting
For a similar design, show wall thickness, pocket depth, hole positions and the surfaces that locate the assembly. Identify cosmetic faces and any areas that must remain free of clamp marks.
Inspection points to agree
Specify the dimensions that control fit, the surface finish and any checks needed after finishing. The inspection method and acceptance criteria are agreed from your drawing.
What to include in your RFQ
Send the model, drawing revision, material grade, finish, quantity and any mating-part requirements.
Quote a similar part Explore this machining service
View more parts in this category
Turned sleeve and thread examples

Product catalogue photograph

02 / PART EXAMPLE

Turned sleeve and thread examples

The photograph shows cylindrical components with bores, shoulders, external threads and slotted features.

Review before quoting
For a similar part, define the inside and outside diameters, overall length and fitting surfaces. State the thread standard, pitch, tolerance class and effective length where required.
Inspection points to agree
Mark critical diameters and any datum, runout or thread-gauge requirements. Include surface roughness and whether the finished dimensions need to be checked after coating.
What to include in your RFQ
Send a dimensioned drawing, material condition, order quantity and details of the component that the part fits.
Quote a similar part Explore this machining service
View more parts in this category
Multi-face housing and connector examples

Product catalogue photograph

03 / PART EXAMPLE

Multi-face housing and connector examples

The photograph brings together shaped housings, ported bodies, rings and mounting frames in a range of visible finishes.

Review before quoting
For similar geometry, provide the full model and identify the relationships between locating holes and faces. We review tool access, workholding and whether the shape calls for standard milling, multi-face machining or combined operations.
Inspection points to agree
Define reference datums, critical hole positions and any geometric tolerances. Tell us which feature relationships need an inspection record.
What to include in your RFQ
Send the CAD model with a matching drawing, overall dimensions, material grade, quantity and inspection requirements.
Quote a similar part Explore this machining service
View more parts in this category

DRAWING-BASED INSPECTION

Agree the checks that matter.

Identify critical dimensions, fit and finish requirements before production. Our quality page shows the inspection equipment available for project review.

Explore quality control

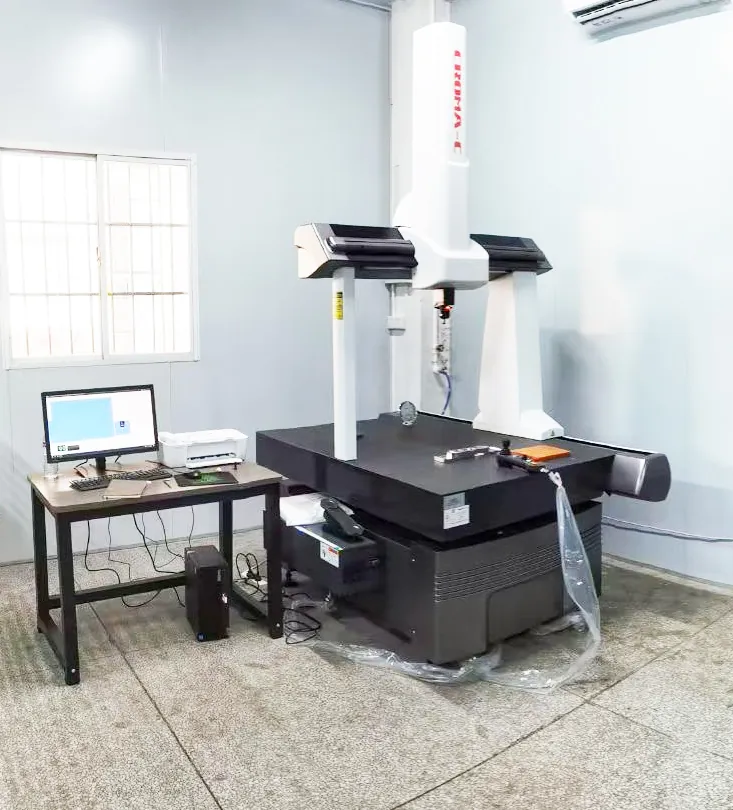

Coordinate measuring equipment at Ryzeal

YOUR NEXT PART

Have a similar part to make?

Send your own model or drawing, even if the exact shape is not shown here. We will review the requirements and discuss an appropriate manufacturing approach.

Upload drawings for a quote
